RAS Series - Infrared Reflectors

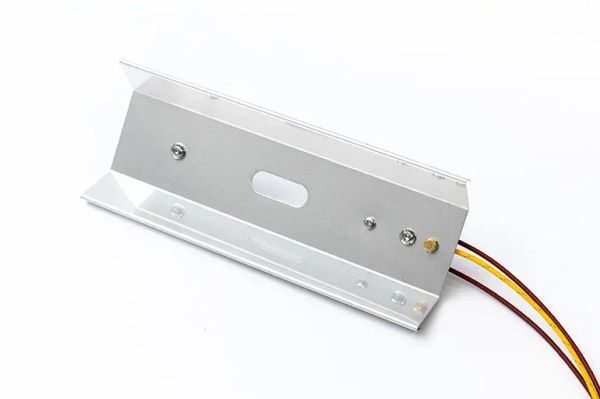

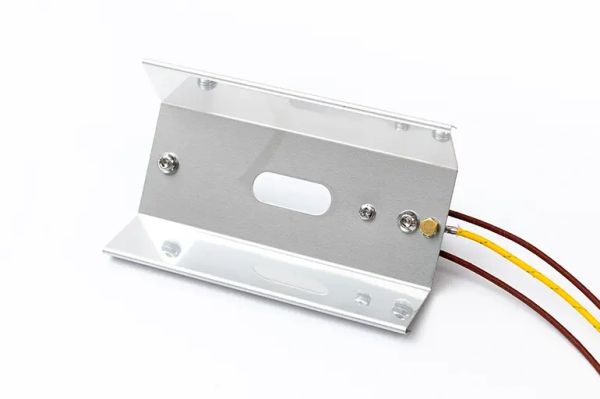

RAS .5 Reflector
The RAS 0.5 aluminium-clad steel reflector is engineered for high-performance infrared heating applications and is supplied without infrared heaters. Designed to accommodate both HTE and HFEH ceramic emitters, this robust reflector features a polished, highly reflective casing that maximizes heat output and energy efficiency.
Size: 100 x 60 x 160mm / 3.94 x 2.36 x 6.30 Inches
Maximum Wattage: 500W
Maximum Volts: 480V
Maximum Amps: 13A
RAS 1 Reflector
The RAS 1 aluminium-clad steel reflector is engineered for high-performance infrared heating applications and is supplied without infrared heaters. Designed to accommodate both FTE and FFEH ceramic emitters, this robust reflector features a polished, highly reflective casing that maximises heat output and energy efficiency.
Size: 100 x 60 x 254mm / 3.94 x 2.36 x 10 Inches
Maximum Wattage: 1000W
Maximum Volts: 480V
Maximum Amps: 13A

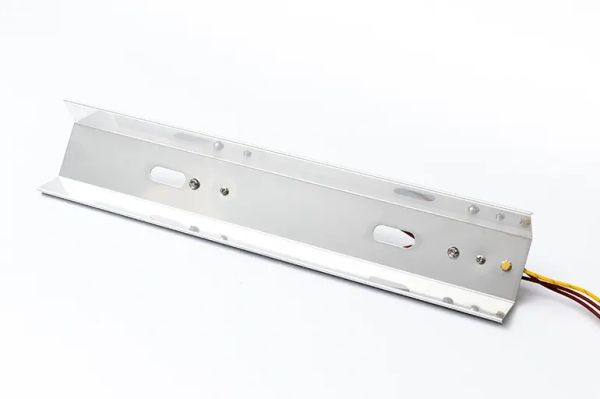

RAS 2 Reflector
The RAS 2 aluminium-clad steel reflector is engineered for high-performance infrared heating applications and is supplied without infrared heaters. Designed to accommodate both FTE and FFEH ceramic emitters, this robust reflector features a polished, highly reflective casing that maximises heat output and energy efficiency.
Size: 100 x 60 x 505mm / 3.94 x 2.36 x 19.88 Inches
Maximum Wattage: 2000W
Maximum Volts: 480V
Maximum Amps: 13A
RAS 3 Reflector
The RAS 3 aluminium-clad steel reflector is engineered for high-performance infrared heating applications and is supplied without infrared heaters. Designed to accommodate both FTE and FFEH ceramic emitters, this robust reflector features a polished, highly reflective casing that maximises heat output and energy efficiency.
Size: 100 x 60 x 754mm / 3.94 x 2.36 x 29.68 Inches
Maximum Wattage: 3000W
Maximum Volts: 480V
Maximum Amps: 18A

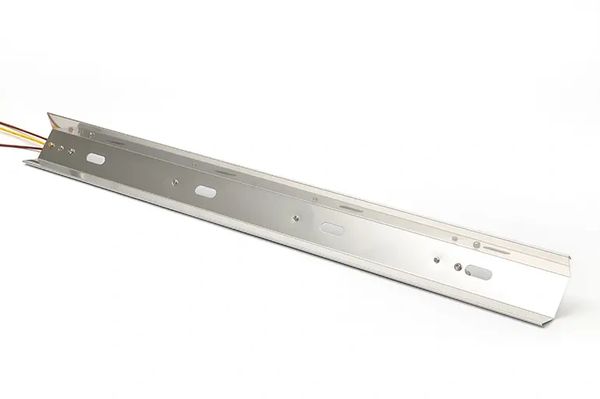

RAS 4 Reflector
The RAS 4 aluminium-clad steel reflector is engineered for high-performance infrared heating applications and is supplied without infrared heaters. Designed to accommodate both FTE and FFEH ceramic emitters, this robust reflector features a polished, highly reflective casing that maximises heat output and energy efficiency.
Size: 100 x 60 x 1004mm / 3.94 x 2.36 x 39.53 Inches
Maximum Wattage: 4000W
Maximum Volts: 480V
Maximum Amps: 18A
RAS 5 Reflector
The RAS 5 aluminium-clad steel reflector is engineered for high-performance infrared heating applications and is supplied without infrared heaters. Designed to accommodate both FTE and FFEH ceramic emitters, this robust reflector features a polished, highly reflective casing that maximises heat output and energy efficiency.
Size: 100 x 60 x 1254mm / 3.94 x 2.36 x 10 Inches
Maximum Wattage: 5000W
Maximum Volts: 480V
Maximum Amps: 23A
QT Series - Infrared Reflectors

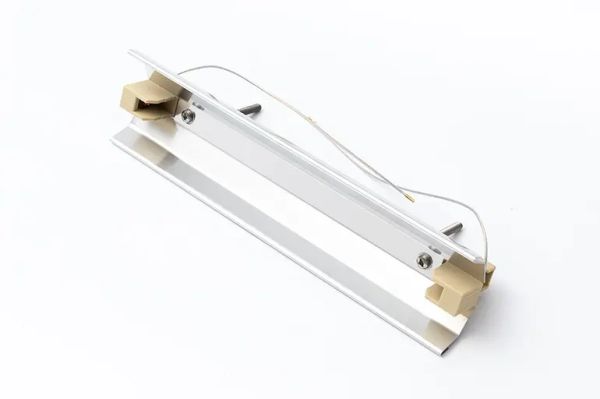

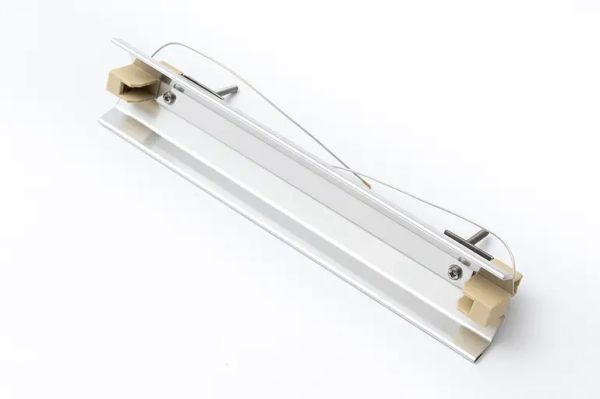

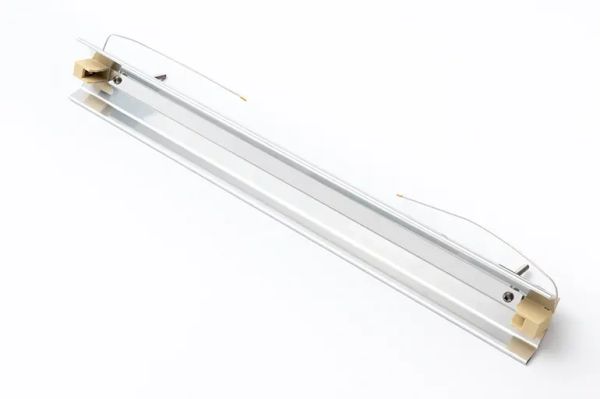

QTLR - Quartz Tungsten Long Reflector
Designed to work seamlessly with Ceramicx quartz tungsten or quartz halogen infrared lamps, this reflector maximizes heat output and delivers consistent, targeted heating.
Size: 497 x 62mm / 19.57 x 2.44 Inches
Requires 2 x M5 fixing bolts for secure mounting
QTMR - Quartz Tungsten Medium Reflector
Designed to work seamlessly with Ceramicx quartz tungsten or quartz halogen infrared lamps, this reflector maximizes heat output and delivers consistent, targeted heating.
Size: 300 x 62mm / 11.81 x 2.44 Inches
Requires 2 x M5 fixing bolts for secure mounting
QTSR - Quartz Tungsten Short Reflector
Designed to work seamlessly with Ceramicx quartz tungsten or quartz halogen infrared lamps, this reflector maximizes heat output and delivers consistent, targeted heating.
Size: 250 x 62mm / 9.84 x 2.44 Inches
Requires 2 x M5 fixing bolts for secure mounting
